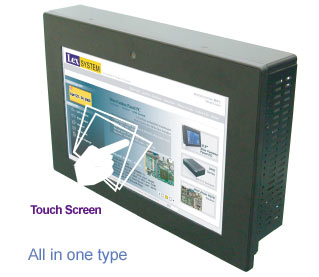

10.2 " Slim Fanless Panel PC |
| Information Kiosk, POS, Mobile solution, Automation control |
View
  |
| |
| Feature |
| Intel Atom / VIA solution, Fanless, Touch screen, Water Proof, Open-frame design |
| Fanless Panel PC |
|
45.5 H x 265.4 W x 167.7 D mm ( Wall mount type )
52.5 H x 286 W x 177.9 D mm ( All in one type ) |
Front Panel Dimension |
7.5 H x 286 W x 190 D mm |
Material |
Plastics front frame + Aluminum |
|
1.3Kgs |
|
2.5" HDD |
|
0 ~ 45 °C ( 2.5" HDD ) / 0 ~ 50 °C ( CF Card ) |
|
5 ~ 90% @ 39 °C, non-condensing |
|
| System Information (Please refer to M/B specification) |
Main board |
|
|
Max Memory |
DDRII SODIMM 4GB |
on board DDRII SODIMM 1GB |
CPU |
Nano 1GHz |
Intel Atom N270 1.6Ghz |
COM port |
3 |
USB |
2 |
LCD Panel |
CPT |
Resolution |
WSVGA 1024 x 600 |
Brightness ( cd/m2 ) |
220 |
Contrast Ratio |
400:1 |
Number of Colors |
262144 |
Touch Screen |
TTI 4 wires / Resistance type |
Mounting Spec. |
VESA 75 / 100 |
Panel frame water proof |
IP65 |
Webcam (Option) |
2.0Mega pixel - auto focus |
Accessory (Option) |
Wall Mount Kit / Stand |
|
| Ordering Information ( Last Stock ) |
| Part Nr. |
Product Code |
MB Type |
CPU on board |
Mem. Support |
USB |
Serial |
LAN GbE |
availbilities |
Storage Support |
Power Supply |
| P13-BTD200 |
STC3253W |
2I385CW |
E3845, 1.91GHz |
Integrated with 4 GB |
4 |
4 |
2 |
last buy |
mSATA / 2.5" HDD |
Ext. 60W |
|
|
|
|
|
|
Optional Acc.:
- Wall Mount kit (for VESA 75, back side of system)
- Wireless 802.11n mini-PCI module
- Wireless 802.11n mini-card module
- PoE (Power Device by PW301), for 7" + 2I268C
- Webcam 2.0 Mega pixel
|
|
|
|
|
|
|
|
|
|
